PVH
XLF
00001
|
Product technical data
XLF-PVH Axial Piston Fixed Pump Features
1. Fully interchangeable with the original brand
2. Very competitive price
3. Low noise, high efficiency, high reliability, long service life
4. Small size, high power density
5. Excellent oil absorption properties.
6. 1 year warranty
7. For engineering equipment, Marine and boating and industrial equipment, etc.
8. For axial piston pump with open loop.
9. Continuous working pressure up to 250 bar, instantaneous maximum working pressure up to 315 bar.
10. Flow proportional to drive speed and displacement and can be achieved by adjusting the variable lock Angle
11. There are constant pressure, constant power pressure, constant voltage flow and other control methods, as well as the reaction rate control
12. Drive shaft can withstand axial and radial loads
13. Sae and iso mounting flange
14. For the structure of the axis of passage and for a multi-loop system
15. Start at any time under pressure.
|

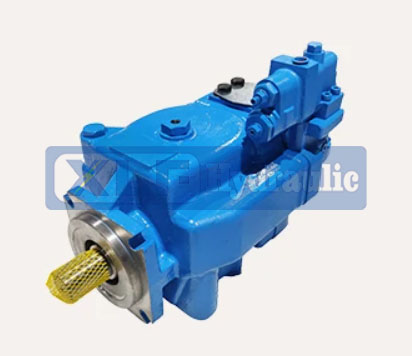

XLF-PVH Axial Piston Fixed Pump Product detail picture
|
Application Video
|
XLF-PVH Axial Piston Fixed Pump Technical data
| Rated Characteristics of PVH Industrial Pumps* | ||||||||
| Parameters | PVH057PVH063PVH074 | PVH081 | PVH098 | PVH106 | PVH131 | PVH141 | ||
| Geometric displacement | ||||||||
| max.cm³/r | 57,4 | 631 | 73.7 | 810 | 983 | 1,065 | 1,311 | 1,411 |
| (in⊃3;/r) | (3.5) | (3.85) | (4.5) | (4.94 | 6.0) | 6.50) | (8.0) | (8.60 |
| Bated pressure | 250 | 230 | 250 | 230 | 250 | 230 | 250 | 230 |
| bar (psi) | 3625)+ | (3300+ | (3625)+ | 3300)+ | (3625)+ | 3300+ | (3625)+ | (3300)+ |
| Rated speeds in r/min | ||||||||
| at various inlet pressures | ||||||||
| 127 mm Hg(5”Hg | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1200 | 1200 |
| Zero inlet pressure | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1500 | 1500 |
| 0,48 bar (7 psi | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Typical effective flow in l/min (USgpm)Rated Pressure | ||||||||
| at 1500 r/min 83 | 102 | 140 | 186 | |||||
| (22) | (27) | 37) | (49) | |||||
| at 1800 r/min | 98 | 125 | 170 | 223 | ||||
| (26) | (33) | 45) | (59 | |||||
| t In load sensing systems the compensator can be set at 280 bar (4060 psi). *Industrial Valve Plates are specified in Pump Special Feature 'Q250'or 'Q140' | ||||||||
XLF-PVH Applicable model
PVH131C-RF-13S-10-C25V-31-057 PVH131C-RF-13S-10-C25V-31-057 PVH057R01AA10B25200000200100010A PVH57C-RSF-1S-10-C25V-31 PVH057R02AA10B252000002002AA010A PVH57C-RSF-2D-11-C25V-31 PVH057R02AA10A25000000200100010A PVH57C-RSF-2S-10-C25-31 PVH057R02AA10A250000002001AA010A PVH57C-RSF-2S-11-C25-31-CD PVH057R02AA10B252000002001AA010A PVH57C-RSF-2S-11-C25V-31 PVH057R51AA10E252004001AE1AE010A PVH57QIC2-RAF-1S-11-C25VT4-31 PVH057R51AA10A250000001001AE010A PVH57QIC2-RF-1S-11-C25-31 PVH057R51AA10B252000001001AE010A PVH57QIC2-RF-1S-11-C25V-31 PVH057R51AA10AAF010A PVH57QIC2-RF-1S-11-CM7-31 PVH057R51AA10A250000002001AE010A PVH57QIC2-RSF-1S-11-C25-31 PVH057R01AA50E252004001AE1AE010A PVH57QIC3-RAF-1S-11-C25VT4-31 PVH057R01AA50B072000001AE1AE010A PVH57QIC3-RAF-1S-11-CM7V-31 PVH057R02AA50E252004001AE1AE010A PVH57QIC3-RAF-2S-11-C25VT4-31 PVH057R01AA50AAE010A PVH57QIC3-RSF-1S-11-CM7-31 PVH057L01AA10B252000001AE1AB010A PVH57QIC-LAF-1S-10-C25V-31 PVH057L01AA10A250000001AE1AE010A PVH57QIC-LAF-1S-11-C25-31 PVH057L02AA10H002000AW1AE1AB010A PVH57QIC-LAF-2S-10-IC-31-CD PVH057L02AA10B252000001AE1AE010A PVH57QIC-LAF-2S-11-C25V-31-CD PVH057L01AA10A250000001001AB010A PVH57QIC-LF-1S-10-C25-31 PVH057L01AA10B252000001001AB010A PVH57QIC-LF-1S-10-C25V-31 PVH057L01AA10E252004001001AE010A PVH57QIC-LF-1S-11-C25VT4-31 PVH057L02AA10A250000001001AB010A PVH57QIC-LF-2S-10-C25-31 PVH057L02AA10B252000001001AB010A PVH57QIC-LF-2S-10-C25V-31 PVH057L52AA10B252000001001AB010A PVH57QIC-LF-2S-10-C25V-31-027 PVH057L02AA10AAE010A PVH57QIC-LF-2S-11-CM7-31-CD PVH057L52AA10H002000AW2001AB010A PVH57QIC-LSF-2S-10-IC-31-027 PVH057R01AA10A140000001AE1AB010A PVH57QIC-RAF-1S-10-C14-31 PVH057R01AA10B142000001AE1AB010A PVH57QIC-RAF-1S-10-C14V-31 PVH057R01AA10B162000001AE1AC010A PVH57QIC-RAF-1S-10-C16V-31-091 PVH057R01AA10A250000001AE1AB010A PVH57QIC-RAF-1S-10-C25-31 PVH057R01AA50A250000001AE1AB010A PVH57QIC-RAF-1S-10-C25-31-057 PVH057R01AA10B252000001AE1AB010A PVH57QIC-RAF-1S-10-C25V-31 PVH057R51AA10B252000001AE1AB010A PVH57QIC-RAF-1S-10-C25V-31-027 PVH057R01AA10A070000001AE1AC010A PVH57QIC-RAF-1S-10-CM7-31 PVH057R01AA10B072000001AE1AB010A PVH57QIC-RAF-1S-10-CM7V-31 PVH057R01AA10H002000AW1AE1AB010A PVH57QIC-RAF-1S-10-IC-31 PVH057R01AA10B142000001AE1BC010A PVH57QIC-RAF-1S-11-C14V-31-CD-115 PVH057R01AA10A250000001AE1AE010A PVH57QIC-RAF-1S-11-C25-31 PVH057R01AA10D250004001AE1AE010A PVH57QIC-RAF-1S-11-C25T4-31 PVH057R01AA10B252000001AE1AF010A PVH57QIC-RAF-1S-11-C25V-31 PVH057R01AA10E252004001AE1AE010A PVH57QIC-RAF-1S-11-C25VT4-31 PVH057R01AA10J002004AW1AE1AE010A PVH57QIC-RAF-1S-11-ICT4-31 PVH057R02AA10A140000001AE1AC010A PVH57QIC-RAF-2S-10-C14-31 |
PVH057R02AA10B162000001AE1AC010A PVH57QIC-RAF-2S-10-C16V-31-091 PVH057R02AA10A250000001AE1AB010A PVH57QIC-RAF-2S-10-C25-31 PVH057R02AA10B252000001AE1AB010A PVH57QIC-RAF-2S-10-C25V-31 PVH057R02AA10A070000001AE1AB010A PVH57QIC-RAF-2S-10-CM7-31 PVH057R02AA10H002000AW1AE1AB010A PVH57QIC-RAF-2S-10-IC-31 PVH057R02AA10A250000001AE1AE010A PVH57QIC-RAF-2S-11-C25-31 PVH057R02AA10E252004001AE1AE010A PVH57QIC-RAF-2S-11-C25VT4-31 PVH057R02AA10A070000001AE1AF010A PVH57QIC-RAF-2S-11-CM7-31 PVH057R01AA10B142000001AK1AE010A PVH57QIC-RBF-1S-11-C14V-31-CD PVH057R01AB10B161400001AY1AC010A PVH57QIC-RBM-1S-10-C16V14-31-092 PVH057R01AB10E252018001AK1AE010A PVH57QIC-RBM-1S-11-C25VT18-31 VICKERS威格士PVH141柱塞泵型号. PVH141R13AF30A00010A PVH141C-RF-13S-10-CM7-31 PVH141R13AF30A230000001001AA010A PVH141C-RF-13S-11-C23-31 PVH141R13AF30A230000002001AA010A PVH141C-RSF-13S-11-C23-31 PVH141R13AF30B252000002001AA010A PVH141C-RSF-13S-11-C25V-31 PVH141R13AF30A230000001001AB010A PVH141QIC-RF-13S-10-C23-31 PVH141R13AF30B250000001001AB010A PVH141QIC-RF-13S-10-C25-31 PVH141R13AG30B252000001001AB010A PVH141QIC-RM-13S-10-C25V-31 PVH141R13AG30B212000001001AE010A PVH141QIC-RM-13S-11-C21V-31 PVH141R13AG30A250000001001AE010A PVH141QIC-RM-13S-11-C25-31 PVH141R13AF30A230000002001AB010A PVH141QIC-RSF-13S-10-C23-31 PVH141R13AF30AAC010A PVH141QPC-RF-13S-10-CM7-31 PVH141R13AF30AAF010A PVH141QPC-RF-13S-11-CM7-31 VICKERS威格士PVH131柱塞泵型号 PVH131R16AG30B182000001AJ1AA010A PVH131C-RBM-16S-11-C18V-31 PVH131R16AF30A250000001AM100010A PVH131C-RCF-16S-10-C25-31 PVH131R16AF30B252000001AM100010A PVH131C-RCF-16S-10-C25V-31 PVH131R16AF30B252000001AA100010A PVH131C-RCF-16S-10-C25V-31-114 PVH131R16AF30A070000001AM100010A PVH131C-RCF-16S-10-CM7-31 PVH131R16AF30E252012001AM1AA010A PVH131C-RCF-16S-11-C25VT12-31-CD PVH131R16AF30J002004BD1AM1AA010A PVH131C-RCF-16S-11-ICT4-31-142 PVH131R03AF30B252000009AM1AM010A PVH131C-RCF-3S-10-C25V-31-117 PVH131R03AF30A070000001AM100010A PVH131C-RCF-3S-10-CM7-31 PVH131R03AF30B252000001AM1AA010A PVH131C-RCF-3S-11-C25V-31 PVH131R12AF30A250000001002AA010A PVH131C-RF-12D-11-C25-31 PVH131R12AF30B25200000100100010A PVH131C-RF-12S-10-C25V-31 PVH131R12AF30B252000001001AA010A PVH131C-RF-12S-11-C25V-31 PVH131R12AF30B252000AF1001AA010A PVH131C-RF-12S-11-C25V-31-023 PVH131R13AF30A25000000100100010A PVH131C-RF-13S-10-C25-31 PVH131R13AF30B25200000100100010A PVH131C-RF-13S-10-C25V-31 PVH131R13AF70B25200000100100010A PVH131C-RF-13S-10-C25V-31-057 PVH131R13AF30A00010A PVH131C-RF-13S-10-CM7-31 |
PVH131R13AF30B07200000100100010A PVH131C-RF-13S-10-CM7V-31 PVH131R13AF30H002000BD100100010A PVH131C-RF-13S-10-IC-31-CD-142 PVH131R13AF30A250000001001AA010A PVH131C-RF-13S-11-C25-31 PVH131R13AF30A250000001001AN010A PVH131C-RF-13S-11-C25-31-115 PVH131R13AF30D250014001001AA010A PVH131C-RF-13S-11-C25T14-31 PVH131R13AF30D250019001001AA010A PVH131C-RF-13S-11-C25T19-31 PVH131R13AF30B252000001001AA010A PVH131C-RF-13S-11-C25V-31 PVH131R13AF30E252015001001AA010A PVH131C-RF-13S-11-C25VT15-31 PVH131R13AF30E252004001001AA010A PVH131C-RF-13S-11-C25VT4-31 PVH131R13AF30AAA010A PVH131C-RF-13S-11-CM7-31 PVH131R13AF30AAN010A PVH131C-RF-13S-11-CM7-31-115 PVH131R02AF30B21200000100200010A PVH131C-RF-2D-10-C21V-31-046 PVH131R02AF30B252000001002AP010A PVH131C-RF-2D-10-C25V-31-165 PVH131R02AF30B252000AL1002AP010A PVH131C-RF-2D-10-C25V-31-206 PVH131R02AF30B252000AL1002AP010A PVH131C-RF-2D-10-C25V-31-210 PVH131R02AF30B252000001002AA010A PVH131C-RF-2D-11-C25V-31-046 PVH131R02AF30A25000000100100010A PVH131C-RF-2S-10-C25-31-046 PVH131R02AF30B25200000100100010A PVH131C-RF-2S-10-C25V-31-046 PVH131R02AF30B192000AA1001AA010A PVH131C-RF-2S-11-C19VB-31-CD PVH131R02AF30B252600001001AA010A PVH131C-RF-2S-11-C25V26-31 PVH131R02AF30B252000001001AA010A PVH131C-RF-2S-11-C25V-31 PVH131R02AF30B252000001001AA010A PVH131C-RF-2S-11-C25V-31-046 PVH131R02AF30B282000AA1001AA010A PVH131C-RF-2S-11-C28VB-31-046 PVH131R02AF30B282000AR1001AA010A PVH131C-RF-2S-11-C28VB-31-219 PVH131R02AF30B282000BK1001AT010A PVH131C-RF-2S-11-C28VB-31-255 PVH131R03AF30A17000000100100010A PVH131C-RF-3S-10-C17-31 PVH131R03AF30A25000000100100010A PVH131C-RF-3S-10-C25-31 PVH131R03AF30B25200000100100010A PVH131C-RF-3S-10-C25V-31 PVH131R03AF30A00010A PVH131C-RF-3S-10-CM7-31 PVH131R03AF30A250000001001AA010A PVH131C-RF-3S-11-C25-31 PVH131R03AF30A250000001001AR010A PVH131C-RF-3S-11-C25-31-164 PVH131R03AF30D250004001001AA010A PVH131C-RF-3S-11-C25T4-31 PVH131R03AF30E252015001001AA010A PVH131C-RF-3S-11-C25VT15-31 PVH131R03AF30J002000BD1001AA010A PVH131C-RF-3S-11-ICT4-31-142 PVH131R13AF30A25000000200100010A PVH131C-RSF-13S-10-C25-31 PVH131R13AF30B25200000200100010A PVH131C-RSF-13S-10-C25V-31 PVH131R13AF30A00010A PVH131C-RSF-13S-10-CM7-31 PVH131R13AF30A250000002001AR010A PVH131C-RSF-13S-11-C25-31-164 PVH131R02AF30B252000002001AA010A PVH131C-RSF-2S-11-C25V-31 PVH131R03AF30A25000000200100010A PVH131C-RSF-3S-10-C25-31 PVH131R03AF30A250000002001AA010A PVH131C-RSF-3S-11-C25-31 PVH131R16AF70E252004001AD1AG010A PVH131QC3-RAF-16S-11-C25VT4-31-087 PVH131R16AF70E162005001AD1AE010A PVH131QIC3-RAF-16S-11-C16VT5-31 PVH131R16AF70E252004001AD1AE010A PVH131QIC3-RAF-16S-11-C25VT4-31 |
PVH131R16AF70F252004001AD1AE010A PVH131QIC3-RAF-16S-11-C25VT4S-31 PVH131R16AF70E072004001AD1AE010A PVH131QIC3-RAF-16S-11-CM7VT4-31 PVH131R13AF70E182005001001AE010A PVH131QIC3-RF-13S-11-C18VT5-31 PVH131R13AF70B252000001001AE010A PVH131QIC3-RF-13S-11-C25V-31 PVH131R13AF70E252004001001AE010A PVH131QIC3-RF-13S-11-C25VT4-31 PVH131R13AF70AAE010A PVH131QIC3-RSF-13S-11-CM7-31 PVH131L16AF30B252000001AD1AB010A PVH131QIC-LAF-16S-10-C25V-31 PVH131L16AF30A250000001AD1AE010A PVH131QIC-LAF-16S-11-C25-31 PVH131L03AF30B252000001AD1AB010A PVH131QIC-LAF-3S-10-C25V-31 PVH131L16AF30A250000001AJ1AE010A PVH131QIC-LBF-16S-11-C25-31 PVH131L16AF30A250000001AM1AE010A PVH131QIC-LCF-16S-11-C25-31 PVH131L16AF30D250004001AM1AE010A PVH131QIC-LCF-16S-11-C25T4-31 PVH131L03AF30A250000001AM1AE010A PVH131QIC-LCF-3S-11-C25-31-CD PVH131L13AF30A250000001001AB010A PVH131QIC-LF-13S-10-C25-31 PVH131L13AF30B252000001001AB010A PVH131QIC-LF-13S-10-C25V-31 PVH131L13AF30AAB010A PVH131QIC-LF-13S-10-CM7-31 VICKERS威格士PVH074柱塞泵型号. PVH074R01AA10A25000000100100010A PVH74C-RF-1S-10-C25-31 PVH074R01AA10B25200000100100010A PVH74C-RF-1S-10-C25V-31 PVH074R01AA10A250000001001AA010A PVH74C-RF-1S-11-C25-31 PVH074R01AA10B252000001001AA010A PVH74C-RF-1S-11-C25V-31 PVH074R02AA10A25000000100100010A PVH74C-RF-2S-10-C25-31 PVH074R02AA10B25200000100100010A PVH74C-RF-2S-10-C25V-31 PVH074R02AA10B252000001001AA010A PVH74C-RF-2S-11-C25V-31 PVH074R01AA10A25000000200100010A PVH74C-RSF-1S-10-C25-31 PVH074R01AA10B25200000200100010A PVH74C-RSF-1S-10-C25V-31 PVH074R01AA10A250000002001AA010A PVH74C-RSF-1S-11-C25-31 PVH074R02AA10A25000000200100010A PVH74C-RSF-2S-10-C25-31 PVH074R02AA10B25200000200100010A PVH74C-RSF-2S-10-C25V-31 PVH074R01AA10A250000001001AB010A PVH74QIC-RF-1S-10-C25-31 PVH074R01AA10B252000001001AB010A PVH74QIC-RF-1S-10-C25V-31 PVH074R01AA10A250000001001AE010A PVH74QIC-RF-1S-11-C25-31 PVH074R01AA10B252000001001AE010A PVH74QIC-RF-1S-11-C25V-31 PVH074R02AA10A250000001001AB010A PVH74QIC-RF-2S-10-C25-31 PVH074R02AA10B252000001001AB010A PVH74QIC-RF-2S-10-C25V-31 PVH074R02AA10A250000001001AE010A PVH74QIC-RF-2S-11-C25-31 PVH074R02AA10B252000001001AE010A PVH74QIC-RF-2S-11-C25V-31 PVH074R01AB10A250000001001AB010A PVH74QIC-RM-1S-10-C25-31 PVH074R02AB10A250000001001AE010A PVH74QIC-RM-2S-11-C25-31 PVH074R01AA10A250000002001AB010A PVH74QIC-RSF-1S-10-C25-31 PVH074R01AA10B252000002001AB010A PVH74QIC-RSF-1S-10-C25V-31 PVH074R01AA10A250000002001AE010A PVH74QIC-RSF-1S-11-C25-31 PVH074R02AA10A250000002001AB010A PVH74QIC-RSF-2S-10-C25-31 PVH074R02AA10A250000002001AE010A PVH74QIC-RSF-2S-11-C25-31 |
PVH074R01AB10A250000002001AE010A PVH74QIC-RSM-1S-11-C25-31 VICKERS威格士PVH098柱塞泵型号. PVH098R01AJ30A25000000100100010A PVH98C-RF-1S-10-C25-31 PVH098R01AJ30B25200000100100010A PVH98C-RF-1S-10-C25V-31 PVH098R01AJ30B252000001001AA010A PVH98C-RF-1S-11-C25V-31 PVH098R02AJ30A25000000100100010A PVH98C-RF-2S-10-C25-31 PVH098R02AJ30B25200000100100010A PVH98C-RF-2S-10-C25V-31 PVH098R02AJ30B252000001001AA010A PVH98C-RF-2S-11-C25V-31 PVH098R01AJ30A25000000200100010A PVH98C-RSF-1S-10-C25-31 PVH098R01AJ30B25200000200100010A PVH98C-RSF-1S-10-C25V-31 PVH098R02AJ30A25000000200100010A PVH98C-RSF-2S-10-C25-31 PVH098R02AJ30B25200000200100010A PVH98C-RSF-2S-10-C25V-31 PVH098R01AJ30A250000001001AB010A PVH98QIC-RF-1S-10-C25-31 PVH098R01AJ30B252000001001AB010A PVH98QIC-RF-1S-10-C25V-31 PVH098R01AJ30A250000001001AE010A PVH98QIC-RF-1S-11-C25-31 PVH098R02AJ30B252000001001AB010A PVH98QIC-RF-2S-10-C25V-31 PVH098R02AJ30A250000001001AE010A PVH98QIC-RF-2S-11-C25-31 PVH098R01AD30A250000001001AB010A PVH98QIC-RM-1S-10-C25-31 PVH098R01AD30A250000001001AE010A PVH98QIC-RM-1S-11-C25-31 PVH098R01AJ30A250000002001AB010A PVH98QIC-RSF-1S-10-C25-31 PVH098R01AJ30B252000002001AB010A PVH98QIC-RSF-1S-10-C25V-31 PVH098R01AJ30A250000002001AE010A PVH98QIC-RSF-1S-11-C25-31 PVH098R02AJ30A250000002001AB010A PVH98QIC-RSF-2S-10-C25-31 PVH098R02AJ30A250000002001AE010A PVH98QIC-RSF-2S-11-C25-31 PVH098R01AD30A250000002001AB010A PVH98QIC-RSM-1S-10-C25-31 PVH098R01AD30A250000002001AE010A PVH98QIC-RSM-1S-11-C25-31 PVH098R01AD30B252000002001AE010A PVH98QIC-RSM-1S-11-C25V-31 02-345365 PVH063R51AA10AAE010A PVH63QIC2-RSF-1S-11-CM7-31 02-346176 PVH063R01AB10A250000001001AE010A PVH63QIC-RM-1S-11-C25-31 02-346501 PVH063R01AA10D250008001001AE010A PVH63QIC-RF-1S-11-C25T8-31 02-347028 PVH063R01AA10A230000001001AE010A PVH63QIC RF 1S 11 C23 31 02-347404 PVH063R52AA10E172010001AE1AA010A PVH63C2-RAF-2S-11-C17VT10-31 02-347763 PVH063R01AA10A070000001AE1AE010A PVH63QIC-RAF-1S-11-CM7-31 02-348008 PVH063R01AA10AAE010A PVH63QIC-RSF-1S-11-CM7-31 02-348230 PVH063R02AA10AAE010A PVH63QIC-RSF-2S-11-CM7-31 02-466534 PVH063R01AA10AAA010A PVH63C-RF-1S-11-CM7-31-CD 02-466714 PVH063R08AA10B17200000100100010A PVH63B-RF-8S-10-C17V-31-CD 611AK00005A PVH063R51AA10AAF010A PVH63QPC2-RF-1S-11-CM7-31 611AK00009A PVH063R01AA10H002000AW1001AB010A PVH63QIC-RF-1S-10-IC-31 611AK00010A PVH063R02AA10B21200000100100010A PVH63C-RF-2S-10-C21V-31 02-314876 PVH081R01AA10A150000002001AC010A PVH81QPC-RSF-1S-10-C15-31-091 02-345652 PVH081R01AA10A230000001001AA010A PVH81C-RF-1S-11-C23-31 02-347027 PVH081R01AA10A230000001001AE010A PVH81QIC-RF-1S-11-C23-31 02-466140 PVH081R01AA10A230000002001AE010A PVH81QIC-RSF-1S-11-C23-3102-466359 PVH081R13AA10B212000AA1AV100030A PVH81C-RAF-13S-10-C21V20B-31-0B 02-466604 PVH081R01AA10A140000002001AF010A PVH81QIC-RSF-1S-11-C14-31-CD 02-466635 PVH081R01AA10A250000002001AE010A PVH81QIC-RSF-1S-11-C25-31-CD 611AK00012A PVH081R02AA10B21200000100100010A PVH81C-RF-2S-10-C21V-31 02-335449 PVH106R01AJ30A230000001001AE010A PVH106QIC-RF-1S-11-C23-31 02-345653 PVH106R01AJ30A230000001001AA010A PVH106C-RF-1S-11-C23-31 02-345732 PVH106R03AJ30A250000001AD1AE010A PVH106QIC-RAF-3S-11-C25-31 02-345958 PVH106R02AJ30B232000AR1001AA010A PVH106C-RF-2S-11-C23VB-31-224 02-346852 PVH106R13AJ30A070000001AD1AE010A PVH106QIC-RAF-13S-11-CM7-31 02-347141 PVH106R02AJ30A230000001001AE010A PVH106QIC-RF-2S-11-C23-31 02-347184 PVH106R02AJ30B232000001001AA010A PVH106C-RF-2S-11-C23V-31-181 |
|
