HM2
XLF
HM0001

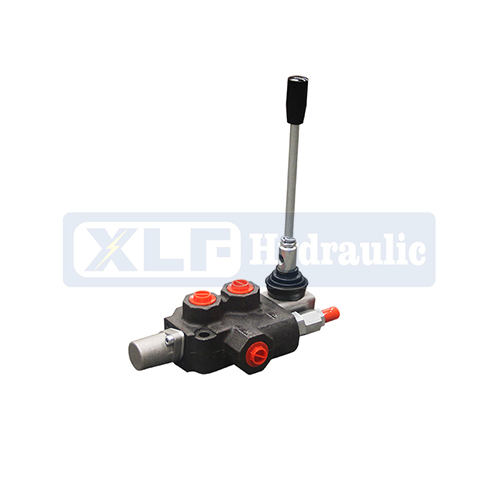

HM2 series integral valve has introduced European advanced technology, with compact structure, flow rate of 45l/min, light weight, high pressure resistance. The valve uses parallel oil circuit, designed with a pressure outlet and other hydraulic components connected to provide power source. The valve is widely used in construction machinery, sanitation machinery, oil field equipment, mining machinery and other machinery hydraulic system.
Model HM2 Dimensional Data
Simple, compact designed, this valve is only one section for open center and closed center hydraulic systems.
1. Fitted with a main pressure relief valve.
2. Diameter 16 mm - 0.63 in interchangeable spools.
3. Available manual and remote with flexible cables spool control kits.
Parameters
Nom.Pressure （MPa） | Max.Pressure （MPa） | Nom.Flow rate （L/min） | Max.Flow rate （L/min） | Back Pressure （MPa） | Hydraulic Oil | ||
Tem.rang （℃） | Visc.rang （mm2/S） | Filtrating Accuracy （μm） | |||||
16 | 31.5 | 45 | 45 | ≤1 | -20～+80 | 10～400 | ≤10 |
