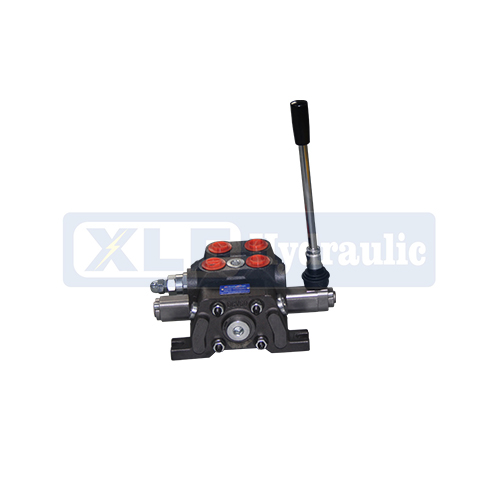

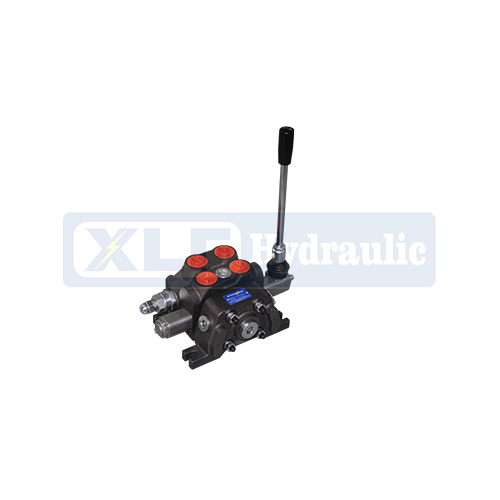

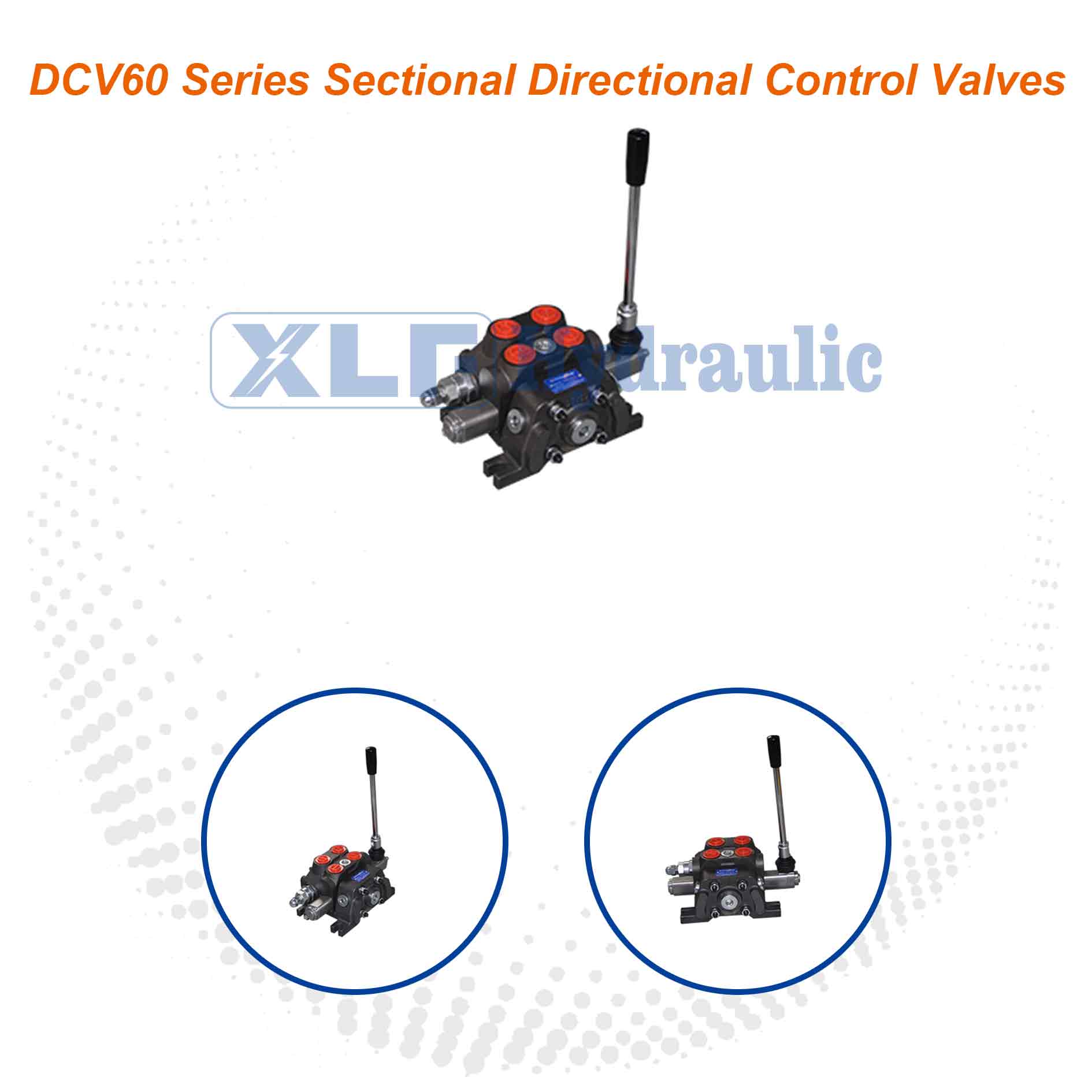

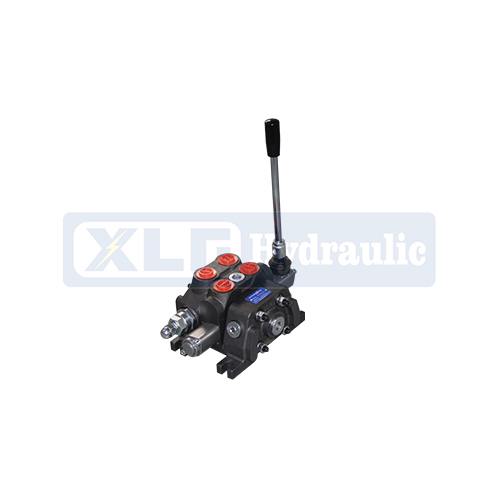

XLF-DCV60 Direction Control Valves Agriculture Machine Distributor Hydraulic Valve Monoblock DCV60

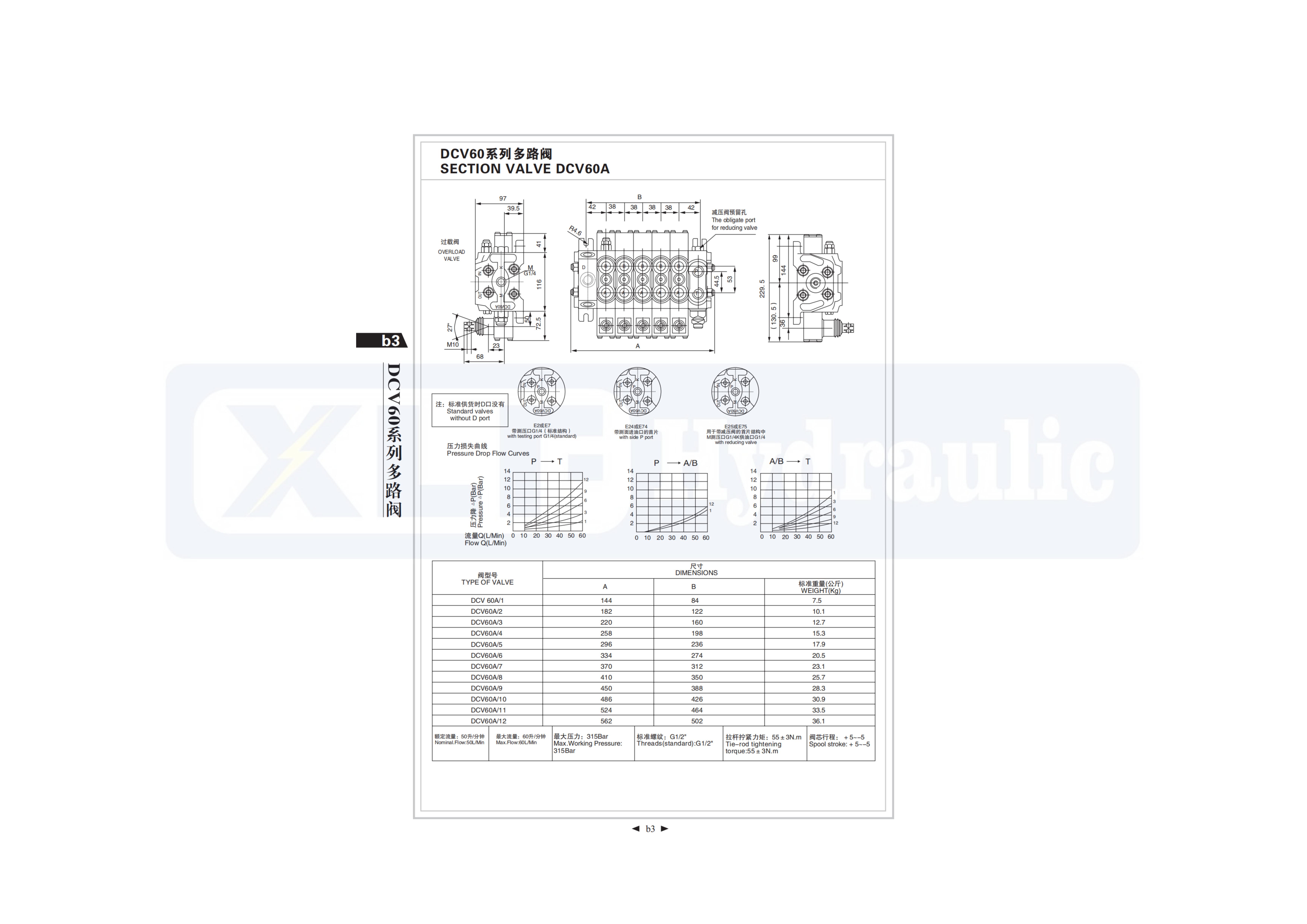

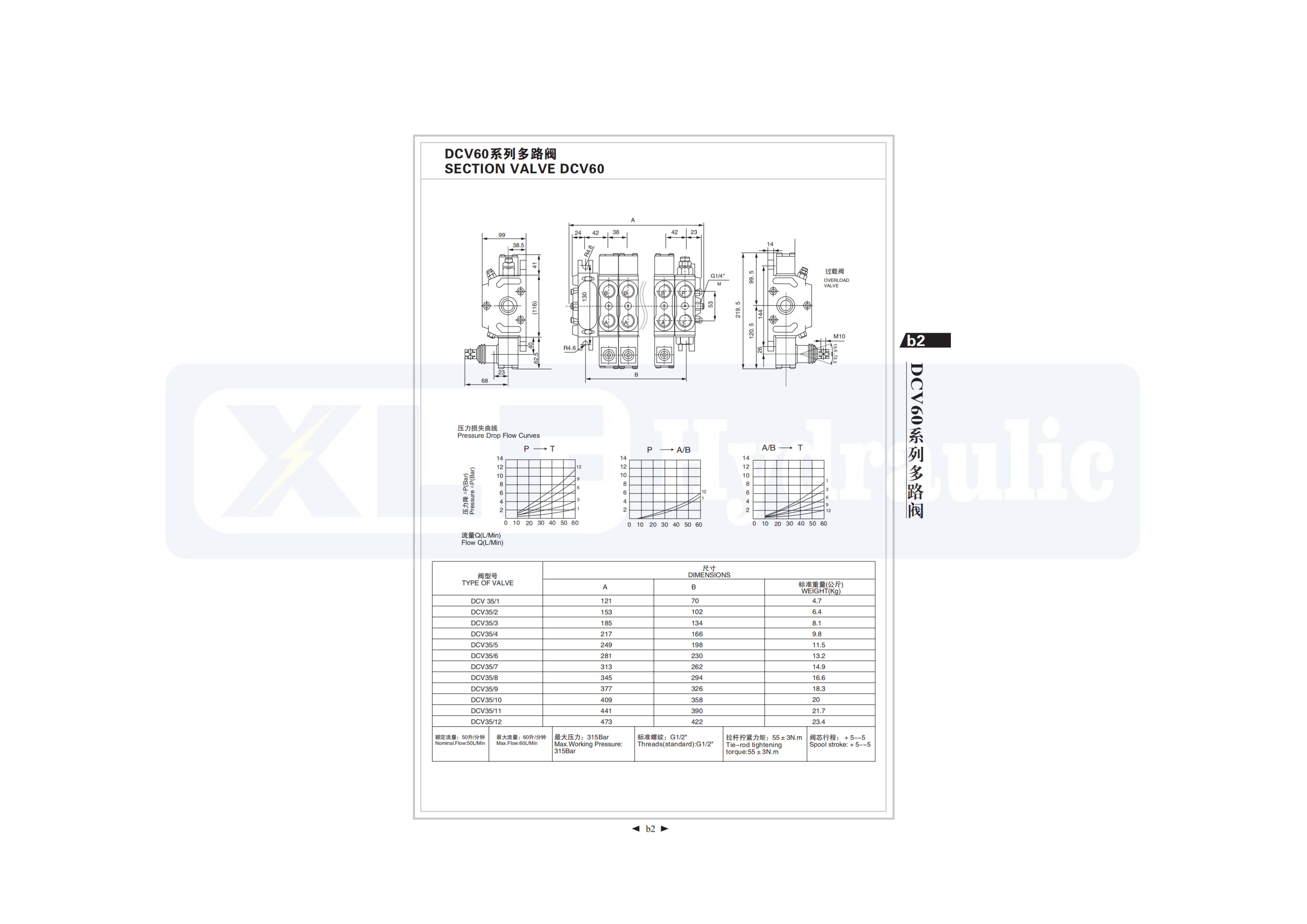

Model DCV60 Dimensional Data

The detent structures include two forms:spring centred spool&without spring centred spool. Spring centred spool have those several structures:detent in A、detent in B、detent in A and B、detent in A,B and O. Without spring centred spool only have one structure detent in A、B and O.We can made the products  inaccordance with pa rticular instructions or requirements of the customers.  The application of electrohydraulic control and handle control have a lot of combination.In the catalogue,we give you only one example of them. We can made the prodacts in accordance with particular instructions or requirements of the customers. For example:right inlet section.12V or 24V. etc. You should present the status pressure and flow before the order.For us to debugg the valves before the conslgnment. We suggest that when you choose the valve please refer to our sellor or technical adviser.

Please tell us the data of the hydraulic remote control when you order it.The normal pilot pressure is 5~ 30 bar When you have special requirment please tell our technical adviser.

1 Sectional types with 1 to 10 working sections

2 DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar;

3 DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar;

4 DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar;

5 Spool function options: O,P, Y, A and etc.

6 Nominal diameter: G3/8,G1/2; G3/4;

7 Model examples: DCV100-4OQ; DCV60-2OW.2OT; DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.

8 Lever side control: manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote control.
