OEM Axial Piston Variable pump of A11VLO series A11VO60 A11VO75 A11VO95 A11VLO130 A11VLO145 A11VLO190 A11VLO260 plunger hydraulic pumps

OEM Axial Piston Variable pump of A11VLO series A11VO60 A11VO75 A11VO95 A11VLO130 A11VLO145 A11VLO190 A11VLO260 plunger hydraulic pumps

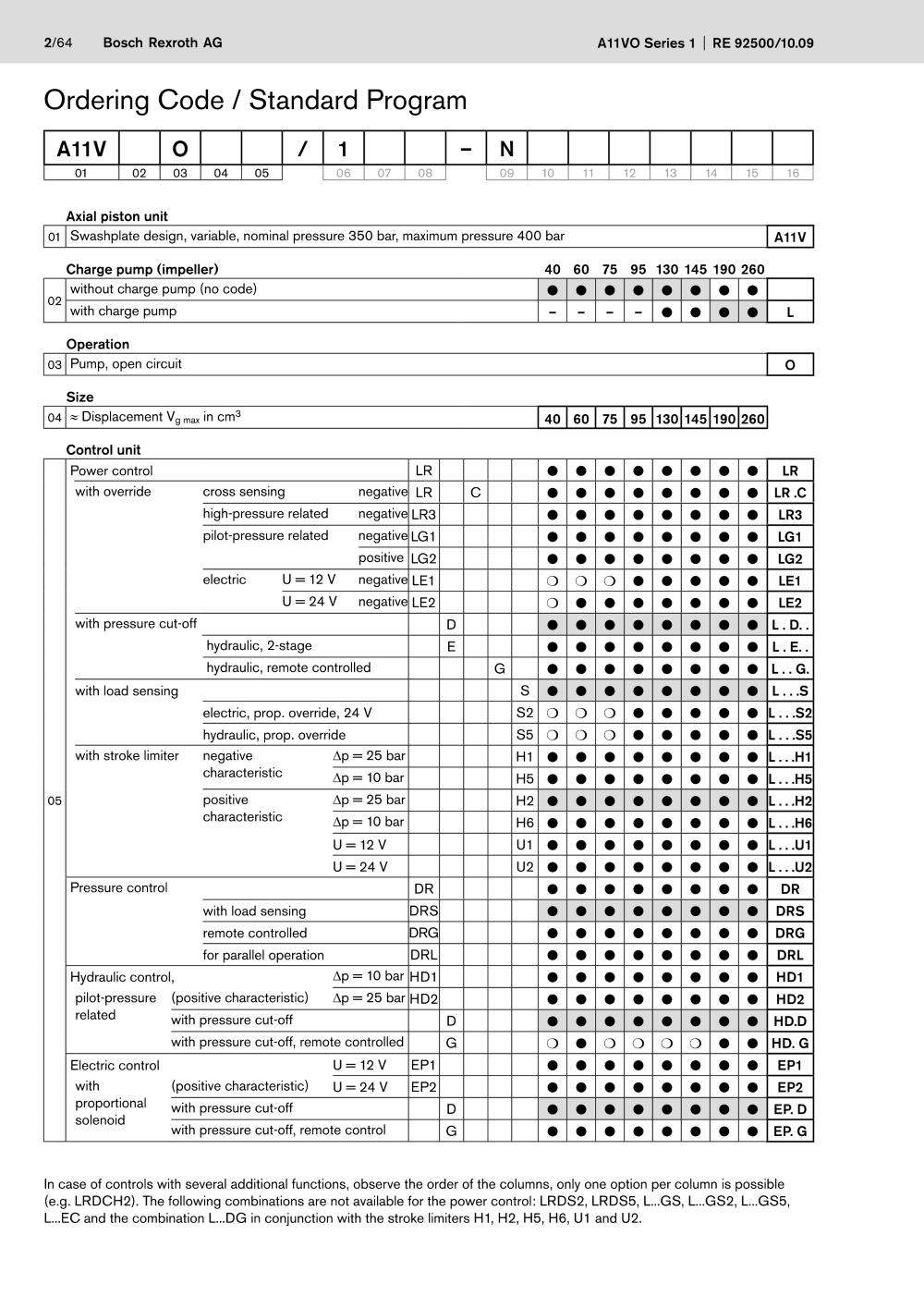

A11VO model, series 1, index 0 Specifications 40, 60, 75, 95, 130, 145, 190, 260 Nominal pressure 350bar, maximum pressure 400bar

Quantity:
Availability:





Inquire Add to Basket

Model:
A11VO A11VLO
Brand:
XLF
Code:
KB00004

Product Description

A11VO hydraulic control valve Purpose:

Used in mining tunneling machines, coal mining machines, engineering machinery, beam transportation equipment, concrete pump trucks, heavy-duty hydraulic flat trucks, hydraulic pump stations, drilling machines, blasting machines, paper equipment, road machinery, ocean going vessels, elevators, steelmaking, injection molding, steel aluminum extrusion, petroleum equipment, mining machinery, winding machines, and other equipment.

A11VO-1

Safety instructions

-The A11VO pump is designed for use in open circuits.

-The project planning, assembly, and commissioning of axial piston components must be carried out by qualified personnel.

-The working pipeline oil port and functional oil port are only designed for hydraulic pipelines.

-During and shortly after operation, there may be a risk of burns caused by axial plunger components (especially electromagnets). Appropriate measures should be taken

Safety measures (such as wearing protective clothing).

-The characteristics may change depending on the different working conditions of the axial piston components (working pressure, oil temperature).

-Pressure oil port:

The oil port and fixed thread are designed for the maximum specified pressure. The machine or system manufacturer must ensure that the safety factor of the connecting components and pipelines is full

Meet the specified working conditions (pressure, flow rate, hydraulic oil, temperature).

-The data and instructions contained here must be followed.

-Use the following tightening torque:

: Threaded hole of axial plunger element:

The maximum allowable tightening torque MG max is the maximum value for threaded holes and must not exceed this value.

Joint:

Please refer to the manufacturer's instructions for the tightening torque of the joints used.

. Fixing screws:

We recommend that the tightening torque of the fixing screws that meet DIN 13 be checked separately according to VDI 2230.

Locking screw:

For the metal locking screws provided with the axial plunger element, apply the required tightening torque MV for the locking screws.

-This product component has not been certified and approved in accordance with the general machine safety concept of DIN EN ISO 13849.
