Home » Hydraulic Products » Hydraulic pump » Vane pump » Hydraulic V series double V2010 Vickers hydraulic pumps

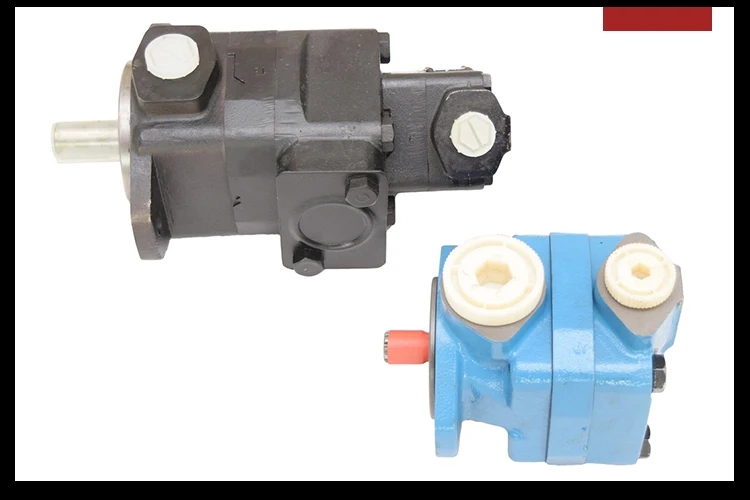

Hydraulic V series double V2010 Vickers hydraulic pumps

Name: Hydraulic V series double V2010 Vickers hydraulic pumps
Brand: Emanway
SKU: 750566008
Rating: 5.0 (45 reviews)

Model Series	Ring Size Delivery at 1200 r/min & 7 bar (100 psi) USgpm	Geometric Displacement cm 3 /r (in 3 /r)	Delivery at 1500 r/min & 7 bar (100 psi) L/min (USgpm)	Maximum Pressure bar (psi)	Maximum Speed rpm	Minimum Speed rpm	Weight kg (lb)
V10 V10F V10P	1 2 3 4 5 6 7	3.3 (0.20) 6.6 (0.40) 9.8 (0.60) 13.1 (0.80) 16.4 (1.00) 19.5 (1.19) 22.8 (1.39)	4.70 (1.25) 9.40 (2.50) 14.20 (3.75) 18.90 (5.00) 23.60 (6.25) 28.40 (7.50) 33.10 (8.75)	172 (2500) 172 (2500) 172 (2500) 172 (2500) 172 (2500) 152 (2200) 138 (2000)	4800 4500 4000 3400 3200 3000 2800	650 650 650 650 650 650 650	4.5 - 6.8 (10 - 15)
V20 V20F V20P	6 7 8 9 10 11 12 13	19.5 (1.19) 22.8 (1.39) 26.5 (1.62) 29.7 (1.81) 36.4 (2.22) 39.0 (2.38) 42.4 (2.59)	28.39 (7.50) 33.11 (8.75) 37.85 (10.00) 42.57 (11.25) 52.04 (13.75) 56.77 (15.00) 61.50 (16.25)	172 (2500) 172 (2500) 172 (2500) 172 (2500) 172 (2500) 152 (2200) 152 (2200)	3400 3200 2800 2800 2500 2400 2400	650 650 650 650 650 650 650	7.3 - 8.2 (16 - 18)
