| Material: | |
|---|---|
| Pressure: | |
| Model: | |
| Structure: | |
| Type: | |
| Pump Type: | |
| Product name: | |
| Quantity: | |
T7BB T7BBS
Emanway
0060
High-Pressure Performance: With a maximum intermittent pressure rating of 6000 psi (4207 bar) and a maximum continuous pressure rating of 5000 psi (350 bar), these pumps are suitable for high-pressure applications .
Versatile Displacement Options: The T7BB and T7BBS pumps offer a range of displacement options from 5.8 cm³/rev (0.35 in⊃3;/rev) to 50.0 cm³/rev (3.01 in⊃3;/rev), allowing for customization to specific application requirements .

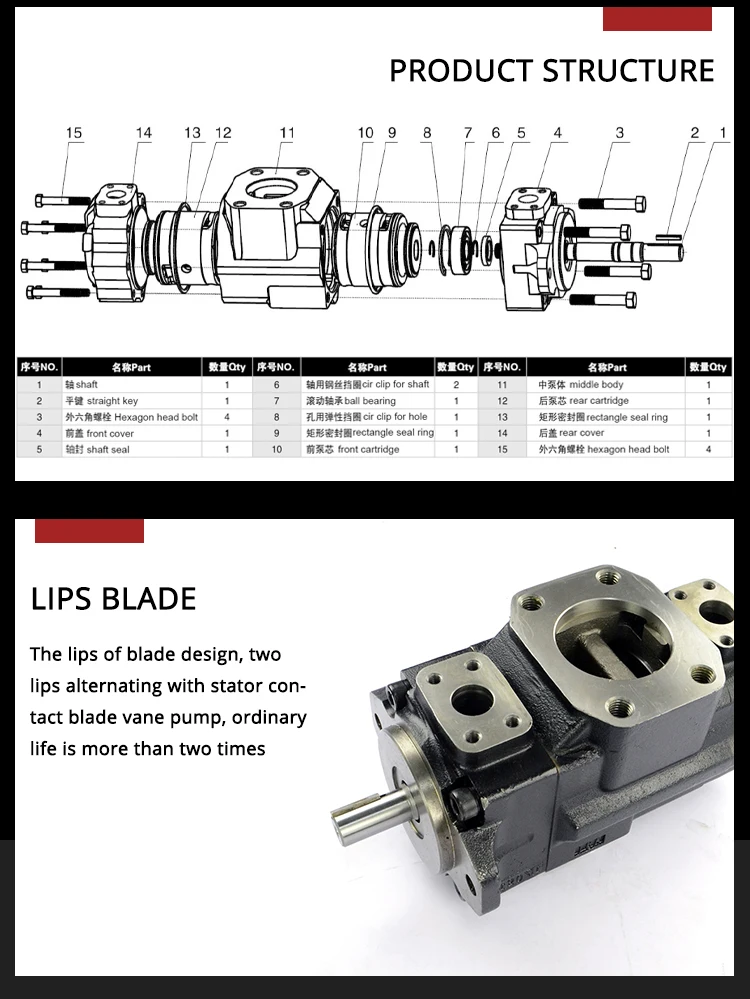

Durable Construction: The pumps are built with a robust barrel bearing design and hydraulically controlled rocker cam, ensuring durability and reliable pressure control .
Low Maintenance: The design of the T7BB and T7BBS pumps incorporates features that reduce the need for frequent maintenance, contributing to lower operating costs and extended service life .
Compatibility: These pumps are compatible with a wide range of industrial equipment and can be integrated into various hydraulic systems .
Flow Rate: The flow rate varies depending on the pump's displacement and operating speed, with maximum flow rates achievable at 1800 RPM .
Speed: The maximum speed for the pump is 3000 rpm, ensuring efficient operation even at high speeds .
Weight: The pumps are designed to be compact and lightweight, with the weight ranging from approximately 32.6 kg (71.87 lb) depending on the model and configuration .
Mining: For the operation of hydraulic shovels, drills, and other heavy machinery.
Construction: In cranes, excavators, and other construction equipment.
Marine: For steering and actuation systems in ships and offshore platforms.
Energy: In hydraulic systems for power generation and distribution equipment.
T6 Series Single Pump
| T6C | -17 | -1 | R | 0 | -A | 1 |
| Code of series | Displacement code | Shaft type | Direction of rotation | Outlet port position | Design No. | Sealing level |
| T6C | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | See of Shaft | (Viewed from the shaft end of pump) | 1-S1, NBR Nitrile rubber 5-S5, Fluoro rubber | ||
| R-Clockwise rotation L-Counterclockwise rotation | 00-Opposite inlet port 01-Inline with inlet 02-90°CCW from inlet 03-90° CW from inlet | A | ||||
| T6D | 14, 17, 20, 24, 28, 31,35,38, 42,45, 50, 61 | |||||
| T6E | 42, 45, 50, 52, 57, 62, 66, 72, 85 | |||||
| T6CC | -25 | -17 | -1 | R | 2 | -C | 1 | 10 |
| Code of series | Displacement of front pump | Displacement of rear pump | Shaft type | Rotation | Port | Design | Sealing level | Port |
| positions | number | dimensions | ||||||
| T6CC | 03, 05, 06, 08,10, 12, 14, 17, 20,22,25, 28,31 | 03,05,06,08,10,12,14, 17,20,22,25,28,31 | See of shaft | (viewed from shaft end of pump) R-Clockwise rotation L-Counter clockwise rotation | See pictures below | C | 1-S1, NBR Nitrile rubber 5-S5,Fluoro rubber | 00,01,10,11 See installation dimension No options |
| T6DC | 14, 17, 20, 24, 28,31,35, 38, 42, 45, 50, 61 | 03,05,06,08,10,12,14,17, 20,22,25,28,31 | ||||||
| T6EC | 42, 45, 50, 52,57, 62, 66, 72, 85 | 03,05,06,08,10,12,14,17, 20,22,25,28,31 | ||||||
| T6ED | 42, 45, 50, 52,57, 62, 66, 72, 85 | 14,17,20,24,28,31,35, 38,42,45,50,61 |
| T6DCC | -42 | -17 | -10 | -1 | -R | 2 | -A | 1 | 1 |
| Code of series | Displacement of front pump | Displacement of middle pump | Displacement of rear pump | Shaft type | Rotation | Port positions | Desiqn NO. | Sealing level | Port dimensions |
| T6CCC | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03,05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | 03, 05, 06, 08, 20, 22, 25, 28, 10, 12, 14, 17, 31 | See of shaft | (Viewed from shaft end of pump) R-Clockwise Rotation L-Counter clockwise rotation | See pictures below | A | 1-SI NBR Nitrile rubber 5-S5 Fluoro rubber | 00,01 See installation dimensions |
| T6DCCS | 14, 17, 20, 24, 28, 31,35, 38, 42, 45, 50,61, | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | ||||||
| T6EDC | 42, 45, 50, 52, 57, 62, 66, 72, 85 | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | ||||||
| T6EDCS |
